Mobylette Raleigh Moped Gurtner Carb Manifold Inlet 15mm MBK 88, 89, D15, AV7 **

£6.99
**Please Read Description
Make Mobylette,Motobecane,MBK
Model 88,89
Type Engine
Availability: In stock

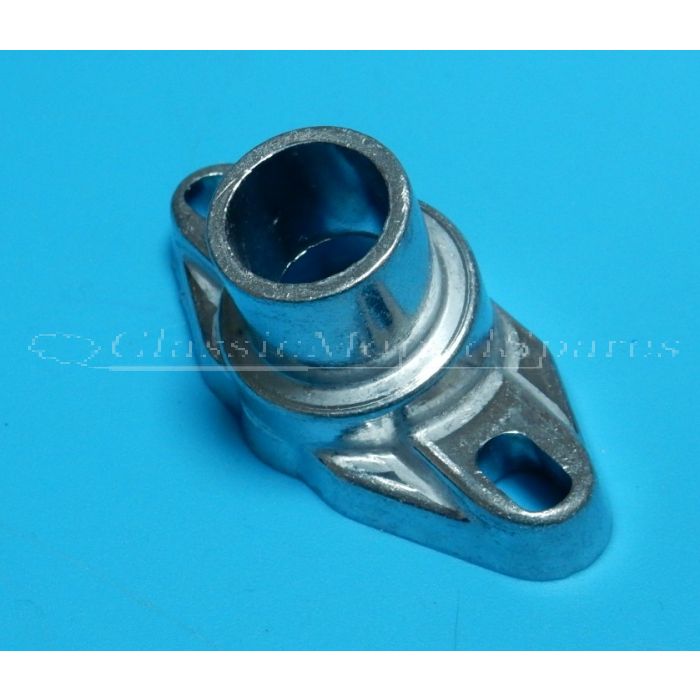

NEW replacement engine manifold inlet suitable for using with the Replacement AR2-12 Carburettors.
The inlet has a 19mm outer diameter pipe and 15mm internal so the new Gurtner AR2 Carburettor can be clamped straight on.
To fit Mobylette Mopeds with the AR2 Carburettor such as the 88,89


 **WARNING:

- Please note the angle of the inlet means that this may not be suitable for many Mobylettes and the range of Raleigh Mopeds without modification. There may not be any practical way of doing this so please read important facts below.

- The original manifold inlet on a Mobylette AV42 for example has an angle of 40 degrees

- This new manifold inlet only has a angle of 20 degrees meaning if fitted to an AV42 the AR2 carburettor may not fit under  the frame as the carburettor will be tilted at a higher angle than originally.



Please do check suitability before purchase.
