NEW Replacement Raleigh RM6 Runabout Moped Engine with Electronic Ignition with Exhaust and Variator

£399.00

SPECIAL ORDER - BUY NOW SECURES NEXT AVAILABLE DELIVERY

Make Raleigh
Model RM4,RM6,RM7
Type Engine
Availability: In stock

Description

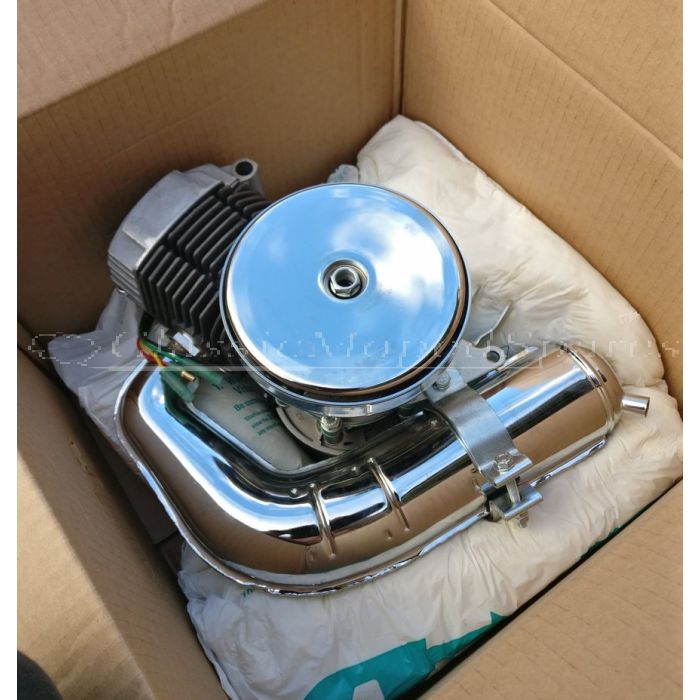

Replacement Raleigh / Mobylette engine with 12V Moriyama type electronic ignition and exhaust.

Not supplied with carburettor, and will also need a cdi unit and external ignition coil for fitting (see related products)

To be sold in the UK only. Export please contact us before  purchasing.

This engine fitted to a Raleigh Runabout. Click here for Test Ride Video

To see how the wiring is set up please Click here for wiring set up

Test Performance Results:-

- Pulling 14 Stone / 88 Kg Rider

- Initial Top Speed 28 mph (45km/H) (during running in)

- Acceleration = Good

- Electronic Ignition Start = Good

(These results were using an original head from another bike so actual performance may be slightly improved with the head supplied with the engine)

Fitting

- The bracket for the exhaust will need to be altered/replaced to be secure

- The drive belt we supply for the Raleigh RM9 will need to be used

- 3 lower bolts will need to be cut off and changed or you will have to dissamble the whole clutch unit to replace the bolts.

Specification

Engine model with cylinder head with low fixing.

The CDI and external high voltage coil are not supplied.

Suitable for the following mopeds

- Raleigh RM6 Runabout

May also be suitable to adapt for other models. Please ask for more information

Parts you may need

You may also need the following if you have not already got them to make this work:

https://www.classicmopedspares.com/electronic-external-ignition-coil-for-mobylette-motobecane-mbk-41-51-881-av10-av7.html

https://www.classicmopedspares.com/mobylette-mbk51-cdi-unit-for-electronic-ignition-original-type.html



Limited numbers available. This is a special order item usually within a 3 week lead time for delivery.

This item is non refundable due to being specially ordered though your statutory rights are not affected.

For Video of engine being tested on a runway! Click Here
