Raleigh RM5 Supermatic Clutch Unit (read description before purchase)

NEW complete clutch assembly unit

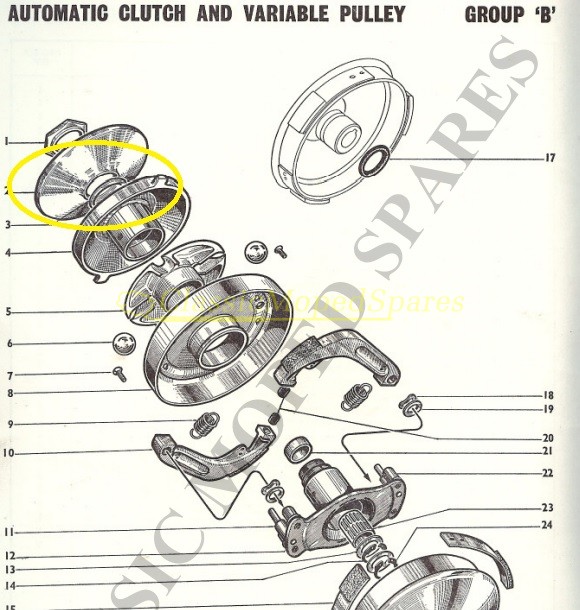

This unit will fit the Raleigh RM5, however you have to reuse your original flang and washer. Numbers 2 and 3 circled on the diagram. If you do not do this the clutch will not function correctly and not engage in higher gear so your bike will only move slowly.  **

This new improved unit has a four leaf’s compared to the previous three which should provide smoother movement with easier pick up.

134mm outer diameter

65mm overall depth

This unit is suitable for the following Dimoby Variable Speed Model Mopeds: –

RALEIGH RM9 ULTRAMATIC

RALEIGH RM5**

RALEIGH RM11 SUPER TOURIST**

RALEIGH RM12 SUPER 50**

**PLEASE NOTE FOR THE MOBYLETTE AV89 AND RALEIGH RM5, RM11 AND RM12 THE UNIT WILL REQUIRE  EITHER A NEW FLANGE OR YOUR ORIGINAL FLANGE TO GET THIS TO FIT AND WORK CORRECTLY.

This unit may be suitable for other models. Please ask for further information if unsure
