Raleigh RM5 Supermatic, RM11 Super Tourist, RM12 Super 50 Pedal Shaft Axle (See description for details)

New Steel Pedal Shaft to fit the AV88, but enthusiasts have used for some of the Raleigh range of Mopeds:

— Raleigh RM5 Supermatic*

— Raleigh RM11 Super Tourist *

— Raleigh RM12 Super 50*

* Enthusiasts have placed an additional spacer at the opposite end to the grease nipple. This would move the circlip face from 36.7mm to 46mm without the required need to cut a new groove.

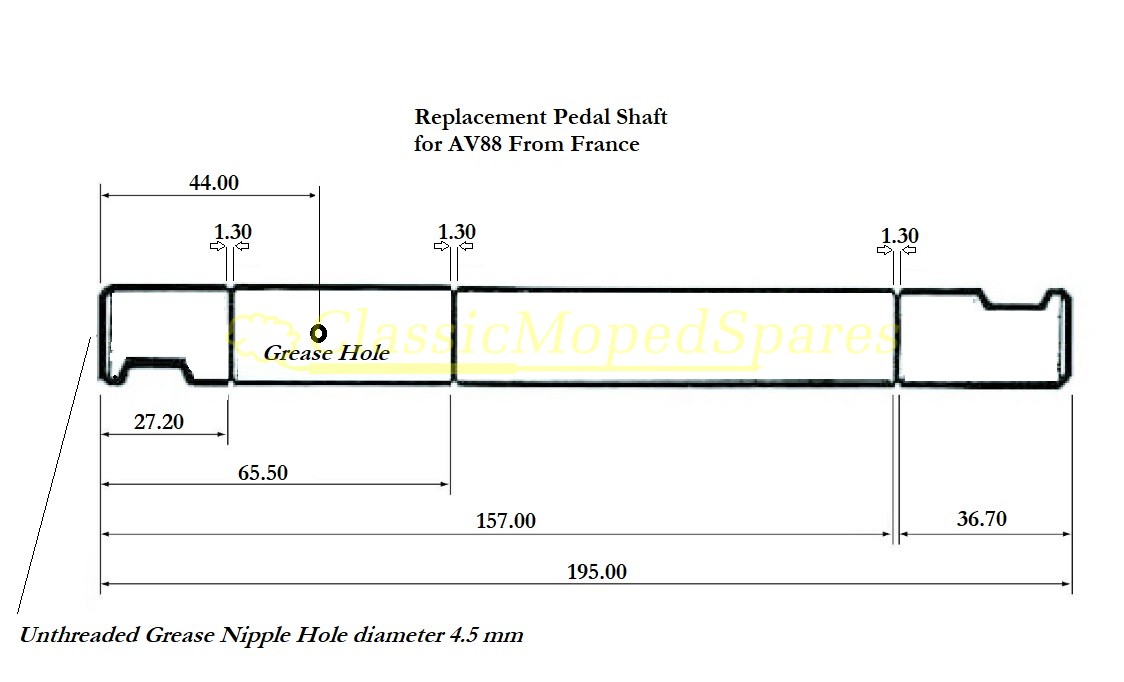

Specification

— 196 mm Long x19mm Diameter

— Circlip Grooves x 3

— Keyway slots

— Steel

NB: The Grease Nipple Hole on the end is 4.5mm diameter, but not threaded.

Compatible with our sprockets, and pedals
